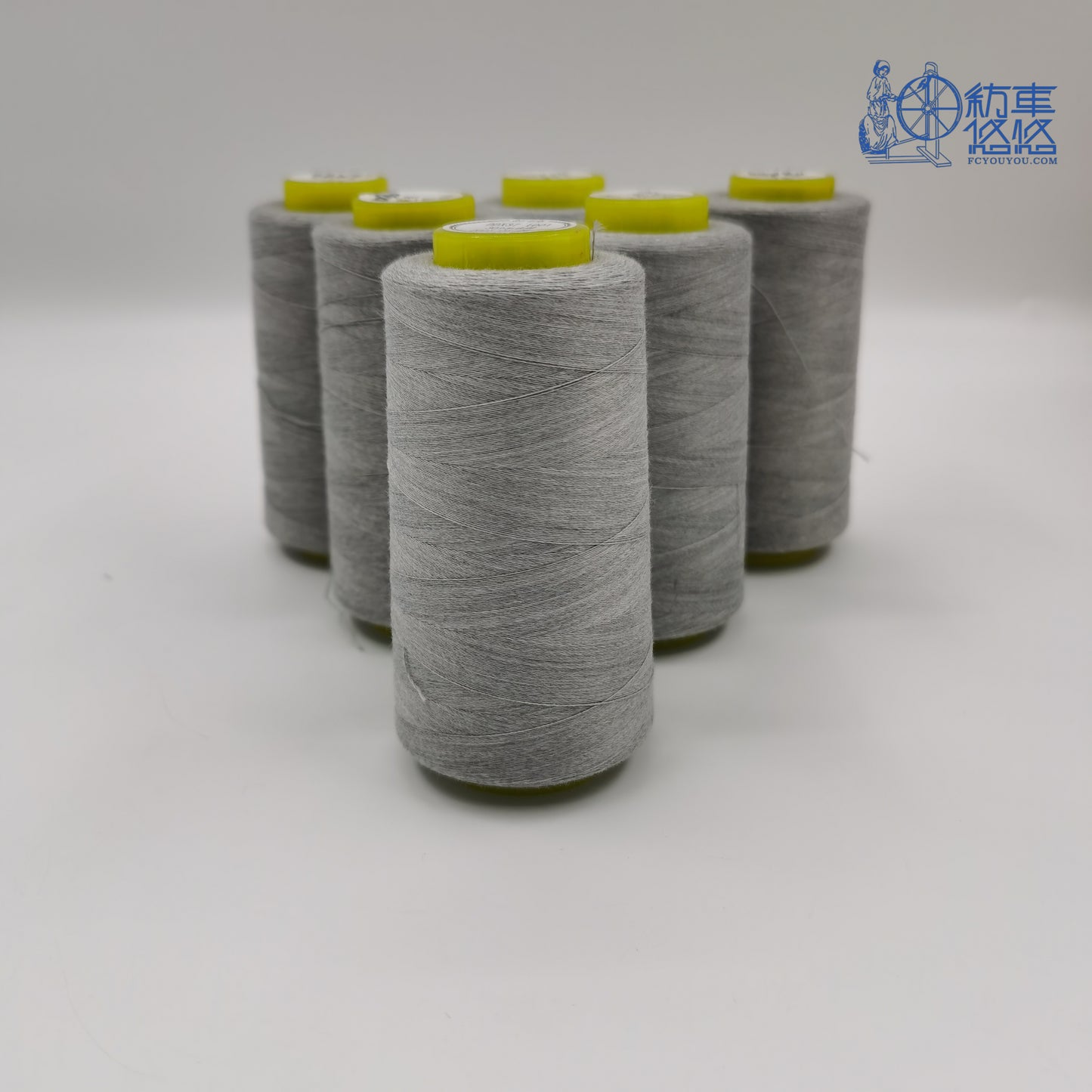

Staple fiber Conductive Thread （sample）

Staple fiber Conductive Thread （sample）

Sample price(Please consult for large freight charges)

·Yarn count: 30S/2, 40S/3, 30S/3, 20S/2, 20S/3, etc.
·Packaging: 100g/cone.

Description:
Stainless steel conductive fiber and ordinary yarn are twisted, blended, and plied to make the yarn conductive.

Features:
1. Good conductivity
2. Low heat shrinkage
3. Excellent sewability and high strength
4. The surface resistance value of our Staple fiber Conductive Thread is 10³Ω a 10⁶Ω, which is permanent type conductive anti-static products.



Yarn Count Tensile Peak
(Kgf)		 Strength
(Mpa)		 Weight/Roll Diameter
(mm)		 Length/Roll(m)
T20 0.3365 4.27 100g 0.12 4950
28S/1 0.313 3.905 100G 0.13 4900
20S/1 0.4355 5.295 100g 0.15 3500
150D/2 1.35 16.88 100g 0.18 2700
30S/2 0.666 8.32 100g 0.19 2560
30S/1+30S/1 1.16 14.48 100g 0.22 2500
30S/2 0.666 8.32 100g 0.22 2475
120D/3 1.64 20.465 100g 0.23 2400
27S/2 0.771 9.32 100g 0.24 2350
40S/3 1.163 14.07 100g 0.26 2000
275D/2 1.351 16.86 100g 0.26 3640
25S/2 0.626 7.81 100g 0.27 1800
150D/3 1.81 22.62 100g 0.27 1800
30S/3 1.728 21.56 100g 0.29 1650
20S/2 0.905 11.29 100g 0.29 1650
250D/5 3.204 39.98 100g 0.29 1650
250D+0.03*2 3.245 40.49 100g 0.3 1500
20S/3 2.22 27.75 100G 0.31 1200
210D/3 1.974 24.63 100G 0.315 1200
210D/3 2.844 35.49 100g 0.315 1200
20S/3+6 2.757 34.4 100G 0.32 1100
20S/3+10 3.09 38.56 100G 0.33 1050
20S/3+12 3.68 45.92 100G 0.34 1000
250D/3 3.245 40.49 100g 0.34 1000
275D/1 1.146 14.295 100g 0.34 1000
250D/2+20S/1 3.145 39.49 100g 0.36 850
20S/4 2.699 33.675 100g 0.37 800
250D/4 3.59 44.86 1KG 0.48 700M
250D/4+20S/1 4.0235 50.205 100g 0.48 700
250D/4 2.949 36.795 100g 0.48 700
420D/3 5.167 64.48 100g 0.5 600
30S/2*4 2.616 30.82 100g 0.5 600
500D/3 4.99 62.3 100g 0.52 500

Material

Stainless steel fiber and polyester fiber

Application

Suitable for petrochemical work clothes, electric power work clothes, emergency rescue clothes, mining work clothes, flame retardant home textile products and decorative items, etc.

Package

We offer you a variety of package sizes: 45*30*24cm ， 48*39*23.5cm ， 53*39*36cm and so on
