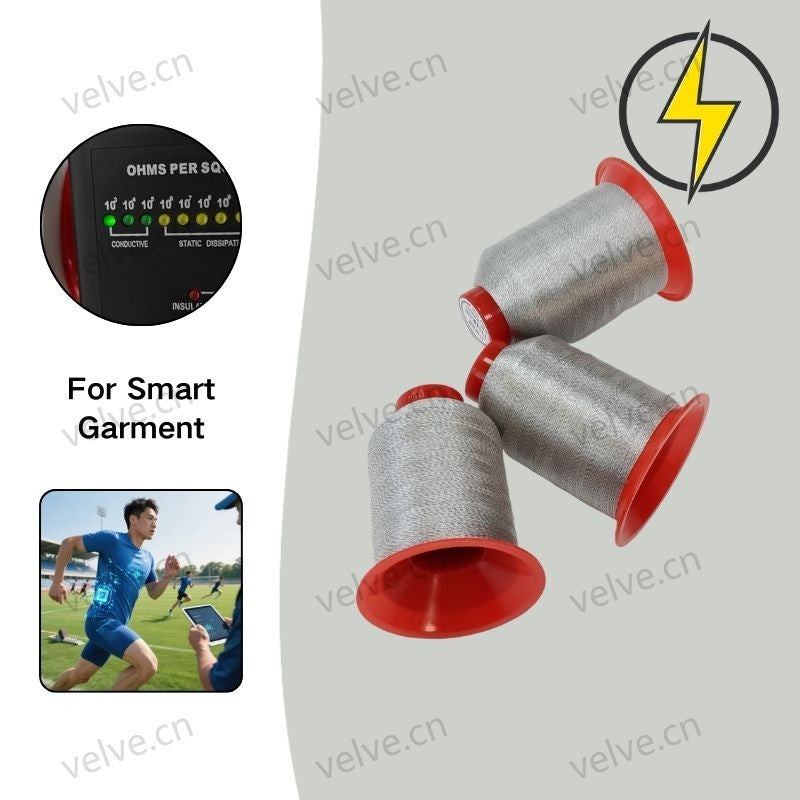

250D/3 silver plated conductive thread

250D/3 silver plated conductive thread

Sample price(Please consult for large freight charges)

·Material: Silver plated fiber + polyester
·Yarn count: 75D/3, 120D/2,  150D/3, 250D/3, etc.
·Packaging: 100g/cone.

Description:
Dongguan Velve Thread Manufactury offers Silver Plated Conductive Sewing Thread, a versatile product with a range of functions including radiation protection, conductivity, antibacterial properties, deodorization, antiviral capabilities, and anti-static features. This thread is also known for its natural safety, making it ideal for medical and health care applications.

Features:
1. Conductive, surface Resistivity:10e3 ~ 10e5ohms
2. High conductivity
3. Sterilization
4. Radiation Protection
5. Anti-static



Yarn Count Tensile Peak
(Kgf)		 Strength
(Mpa)		 Weight/Roll Diameter
(mm)		 Length/Roll
(m)
70D/2 0.782 9.15 100g 0.14 5400
75D/3 0.8835 11.025 100g 0.15 3600
75D/3 0.8855 11.075 100g 0.15 3600
120D/2 0.932 11.135 100g 0.16 3600
120D/2 0.931 11.595 100g 0.16 3600
20S/1+70D 1.11 13.855 100g 0.17 3500
70D/3 0.72 9.01 100G 0.19 3400M
150D/2 1.298 16.205 100g 0.25 2700
120D/3 1.387 17.31 100g 0.26 2400
20S/2+70D*2 2.1645 25.505 100g 0.28 1750
150D/3 2.2525 28.105 100g 0.31 1500
250D/3 3.29 41.06 100g 0.41 1000
250D/4 3.47 43.33 100G 0.46 700

Material

Silver fiber, and polyester filament/staple fiber

Application

Widely applied in Apparel and Textiles, Home textile, Medical products, We not only have wide range products and variety of products. All kinds of high demand conductive products, which is the best conductive flexible material. It can be used in anti-static clothing, conductive bed sheet, conductive blanket, smart wear and other products.

Package

We offer you a variety of package sizes: 45*30*24cm ， 48*39*23.5cm ， 53*39*36cm and so on
